ISO 2248 Zero Distance Drop Tester - High Precision Equipment for Impact Resistance Testing
Name:ISO 2248 Zero Distance Drop Tester - High Precision Equipment for Impact Resistance Testing
Type:BND-ZXD001
Manufacturer:Discover our advanced Zero Drop Tester designed for assessing impact resistance during transportation and handling processes. Compliant with international standards like GB/T, ISO, JIS, ASTM, and ISTA. Learn more about its specifications and functionalities.
Product Description:

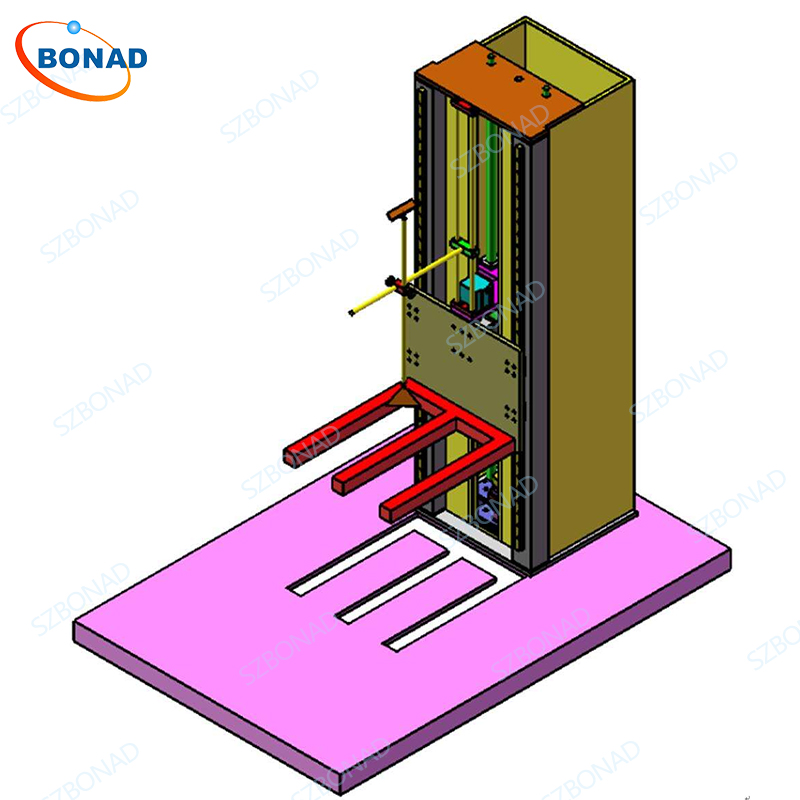

Product Introduction: Zero Distance Drop Test Machine

Model:BND-ZXD001


Equipment Overview:

The Zero Drop Tester is primarily used to assess the impact of drop shocks on objects during actual transportation and handling processes, evaluating the impact resistance of items during transit. This device is mainly utilized for drop tests on larger items. It features an "E" shaped fork that can quickly move downward, serving as a test specimen holder. The test cargo is placed in balance according to the test requirements. During the test, the pallet moves downward at high speed, detaching from the specimen. Before the test cargo hits the base plate, the "E" shaped fork is embedded flush with the base plate under the action of a high-efficiency shock absorber. Theoretically, the Zero Drop Tester can perform drop tests from zero height to its maximum drop height range. The drop height is digitally set according to test requirements and automatically executes the drop test at the set height.

Compliance Standards:

lISO 2248-1985 Packaging Complete Transport Packages Vertical Impact Test Standard

lJIS Z0202-1994 Packaging Goods Drop Test Method

lASTM, D5276,ISTA, and other related testing standards

lGB/T 4857.5-92 Packaging Transport Packaging Drop Test Method

lGB/T 1019-2008 General Rules for Household and Similar Electrical Appliance Packaging

Main Parameters:

Items

Parameters

Drop Height

0~1500mm (adjustable, settable)

Drop Height Error

±10mm (1%)

Max. Specimen Load

60 Kg,100 kg,200 kg,300 kg or customize higher capacities

Max. Specimen Size

1660×430×1100 (mm) larger based on requirements

Drop Test Method

Free fall drop test

Test Aspects

Realize surface, edge, and corner drop tests

Effective Size of Impact Base Plate

1800×1200 (mm)

Impact Plate Material

45# steel, solid steel plate

Control Method

PLC touch screen control + remote control

Lifting Method

Electric (motor), dual guide rails for stability

Arm Power

Pneumatic (cylinder reset and drop achieved by pneumatic pressure; automatic air pressure interlock prevents abnormal arm detachment due to loss of air pressure)

Overall Dimensions

Approximately 2000×1400×2300mm

Weight

Approximately 2000Kg

Protection Devices

Upper and lower limit switch protection

Power Supply

AC 380V 50/60HZ

Total Power Consumption

Approximately 3.5KW

Air Source

User-provided (i.e., air compressor)

If you are looking for more different drop test machines for drop testing of small packages less than 80 kg, please check out our Pneumatic drop tester, Single-arm Drop Tester and Double-arm Drop Tester, or directly reach us to learn more.
