LWS-10 leaf surface temperature and moisture sensor
Name:LWS-10 leaf surface temperature and moisture sensor
Type:LWS-10
Manufacturer:The LWS10 Leaf Surface Humidity Sensor has stable performance and high sensitivity. It is an important tool for observing and studying leaf surface humidity, preventing pests and diseases, and spraying sprinkler control.
Product Description:

LWS-10 leaf surface temperature and moisture  sensor

Product feature:

The LWS10 Leaf Surface Humidity Sensor has stable performance and high sensitivity. It is an important tool for observing and studying leaf surface humidity, preventing pests and diseases, and spraying sprinkler control. This foliar temperature and humidity sensor accurately measures leaf surface moisture and monitors traces of moisture or ice crystals on the foliage. The shape of the sensor is designed with a faux blade, which simulates the characteristics of the leaf page and thus more accurately reflects the condition of the foliar environment. It measures the amount of mist, moisture or ice present by changing the dielectric constant of the upper surface of the blade medium..

※ The significance

Understand the growth and development of crops and crop growth studies.

Prevent the occurrence of pests and diseases and early warning.

Foliar fertilization, spraying, spraying and irrigation control.

Simulate the foliar structure design so that the sensor truly reflects the water dispersion failure of the foliage.

It can detect fog, ice, condensation and rainfall.

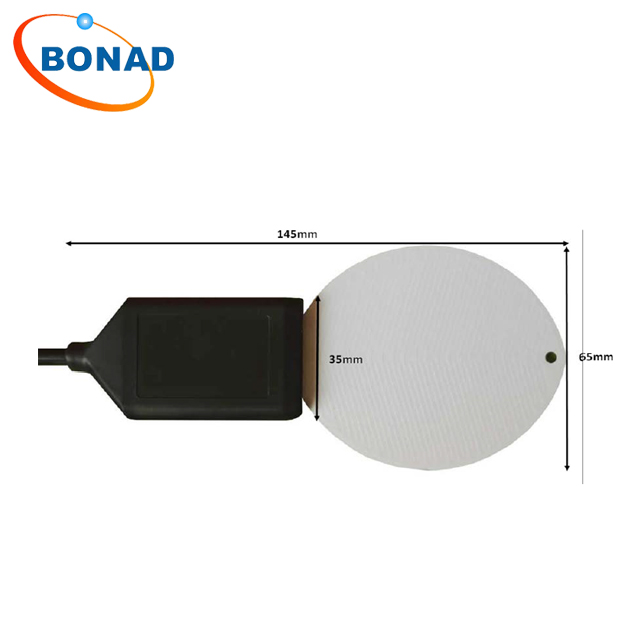

Dimensions

※Model selection

LWS-10

Code 1:

Measurement parameter

A

B

Leaf surface moisture & temperature

Leaf surface moisture(VWC)

Code 2:

Soil volumetric water content

A

B

C

0-100%

0-50%

0-30%

Code3:

Output

A

B

C

RS485temperature and moisture

0-2Vonly moisture

4-20mAonly moisture

※Technical Parameter

Measurement parameter

Moistureper unit area

Response time is less than 1 second

Test accuracymoisture±5%;temperature:±0.5℃

Temperature range & accuracy-40~80℃±0.5℃

Protection level: IP68, can be completely submerged in water for long-term use

Sensor measurement material: PCB circuit board

Sensor sealing material: black flame retardant epoxy resin

Sensor installation: straps tied to the branches

Default cable length: 2 meters (can be customized)

Environment:

Working temperature range:-40~85℃

Input output

RS485,Working voltage 5-30V/DC DC

0-2V,Working voltage 5-30V/DC DC

4-20mA,Working voltage 12-30V/DC DC
