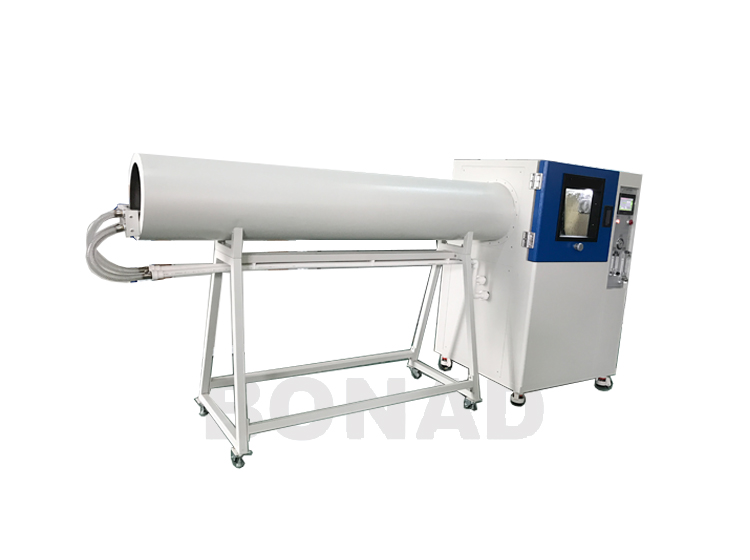

IPX56 Waterproof  Strong water jet Test equipment
Name:IPX56 Waterproof Strong water jet Test equipment
Type:BND-IPX56BS
Manufacturer:IPX5 IPX6 Strong Water Jet Spray Test Chamber,ipx56 water jet spray test chamber,IPX56 spray nozzle
Product Description:

IPX56 Waterproof  Strong water jet Test equipment


Model:BND-IPX56BS

Test standard:

In accordance with IEC60529: 2001 "Degrees of protection provided by enclosures (IP Code)".

Equipment use:

The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.

Product Features:

1, split type structure, safe and reliable.

2, Equipment rack and sample turntable are made of high-quality aluminum alloy and SUS304 # stainless steel plate, to ensure long-term use and does not rust

3, turntable electrical part is whole seal, effectively prevent water leakage.

4, the use of speed control motor turntable, the speed in the standard range stepless adjustable, and can control the forward and reverse rotation (with power for the sample test to prevent winding).

5, water flow through the flow meter adjustment, manual adjustment.

6, the nozzle: IEC60529 in accordance with the specifications for the system (below)

Model

IPX56BS-500L

IPX56BS-700L

IPX56BS-1400L

IPX56BS-1700L

IPX56BS-1900L

Inner size(mm)W*D*H

800*800*800

900*900*900

1180*1180*1000

1180*1180*1180

1180*1180*1300

Outer size(mm)W*D*H

4000*1050*1600

1150*1150*1700

4000*1450*1800

4000*1450*1850

4000*1450*2000

Turntable diameter(mm)

600

600

800

¢800

800

IPX5 diameter(mm)

6.3

IPX6 diameter(mm)

12.5

IPX5 flow(L/min)

12.5±0.625

IPX6 flow(L/min)

100±5L/min

Power(Mpa)

According to the provisions of water flow regulation

spray water distance

2.5M

Pump

stainless steel multi-stage pump

Spray nozzle fixing method

machinery fixation

Water pipe materials

Stainless steel+PPR

Inner box materials

SUS304#stainless steel

Sample table materials

SUS304#stainless steel plate

protector

Electric leakage, water-break, cutting-out

Power supply(V)

380V

Power(KW)

3

Standard

IEC60529:1989+A1:1999、GB4208、GB7000.IPX5IPX6)
