Temperature Measuring Black Test Corner
Name:Temperature Measuring Black Test Corner
Type:BND-CS
Manufacturer:
Product Description:

IEC 60335 IEC 60065 Black Test Corner with K type thermocouple



The components used in the design guarantee an excellent quality of work.

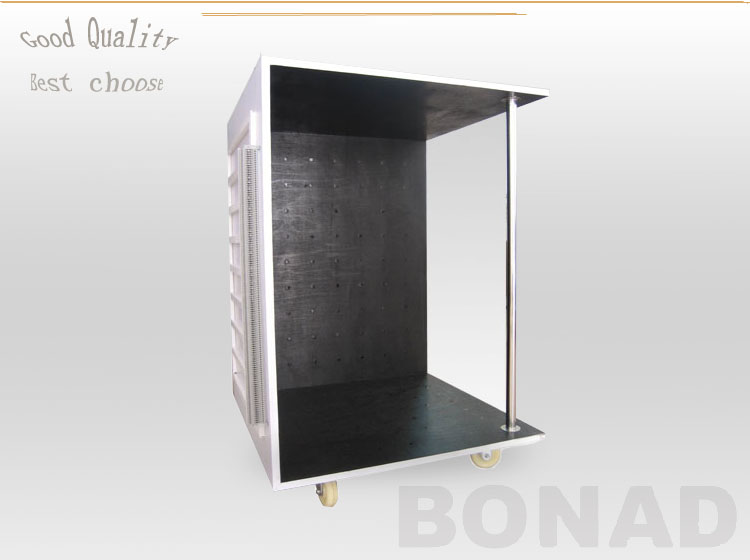

The Black Test Corner  for temperature measurement is conformed by a trihedral one of black painting plywood, with a matrix of holes each 100 mm that allow to adapt thermocouples of measurement easily, specially designed for such case.



The dimensions of the device are: base 800mm x 1000mm and with a height of 1500mm, mounted on a structure with wheels, to allow his movement.



Thermocouples of measurement is of curved type K, mounted on a ceramic case and in its end of measurement they have a copper disc of ?15 mm and 1 mm of thickness. They consist of a compensated cable of variable length (according to the necessity) with a compensated connector male, mini type to accede directly to the measuring instrument.



The Blact Test Corner can appliance to the temperature test of all kinds of electronic products supply, in conformity with the standards requirement of the environmental conditions


Type

Descriptions details

Dimension

600×600×600mm

800×800×1000mm

1000×1000×1000mm (other)

Thermocouple

φ<0.3mm  Import: K type

Thermocouple disposal

Disposal in a line bank( select and fit out thermocouple plug and socket);

Test temperature sheet copper

Diameter15mm, thickness1mm sheet brass

Test temperature point

20point, 32point, 48point(other)

Test temperature
point disposal

100mm x 100mm

Glued board

Thickness about 20mm,  Berlin black in face,Stick the gray sheet glued board in rear.

Active part

Install 4 pieces active wheels

Provide

Personalized Service
