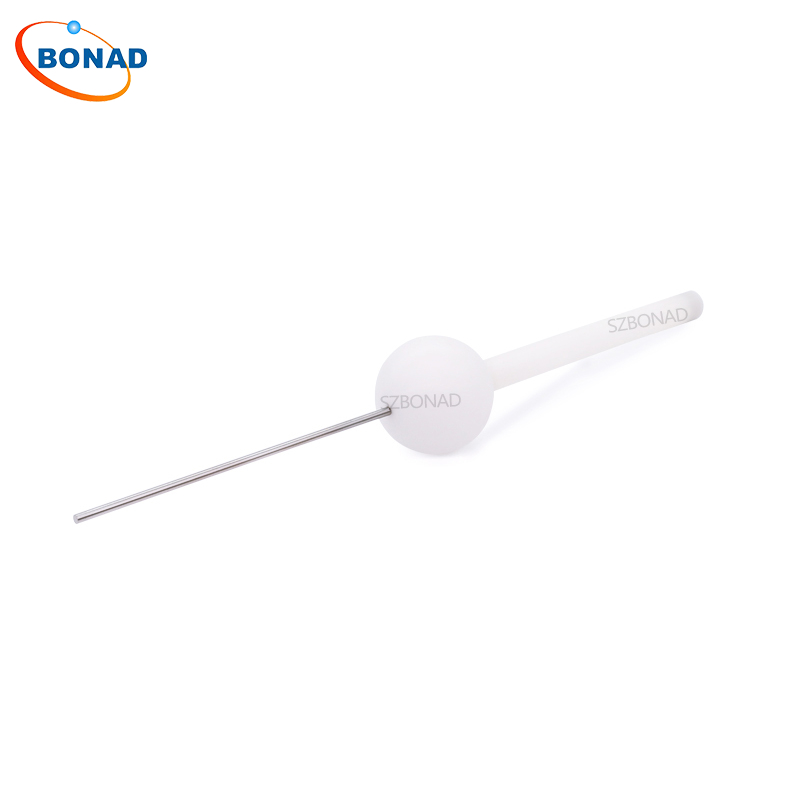

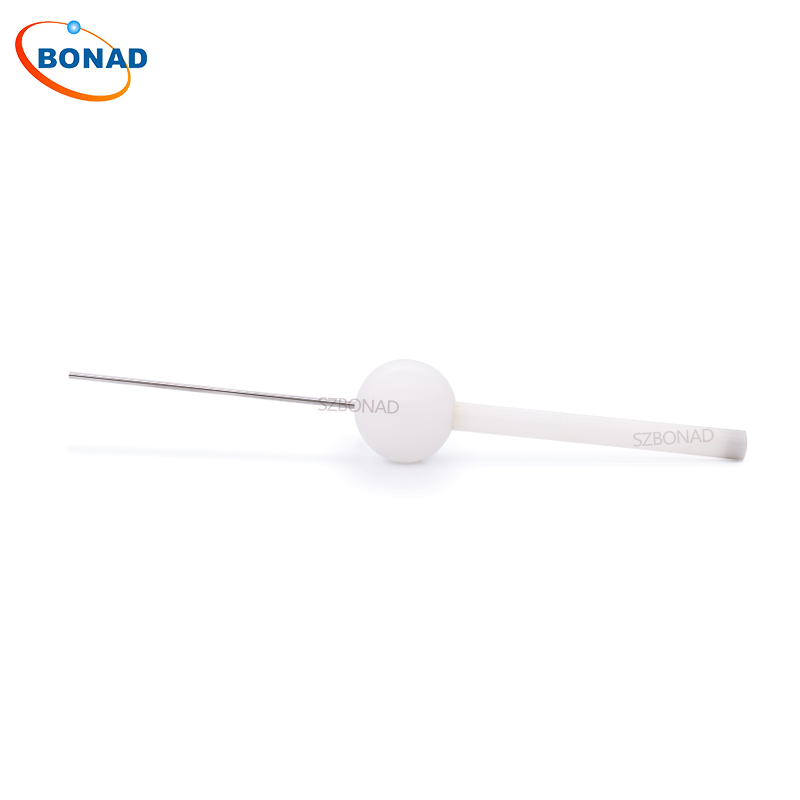

BND-C IP3X Test Probe C (Test Probe C)
Basic Introduction:
1, According to: GB/T4208-2008、IEC61032:1997、IEC60529:2001 AND UL
2, IP3X Test Probe C ( Test Probe C) is necessary appliance for household and similar electrical appliance of against electric shock protection test.
Technical parameters
1, Test Probe Length :100mm
2, Test Probe Diameter:2.5mm
3, Dam- sphere Diameter:35mm
4, Handle Diameter:10mm
5, Handle Length 100mm
6, According to IEC61032 figure 3 (the Test probe C), table 6 GB/T4208-2008 (the first characteristic digital 3)
Application:
1, the joint part of Standard test can't touch the live parts or close to the dangerous parts, and 35mm circular baffle can not be entered .
2, In the test requirement,protected against access to the hazardous parts, Test Probe C/D need to be with push force 3±0.3N or 1±0.1N
Note:For without thrust products,please cooperate with push tension dynamometers to use.
|
