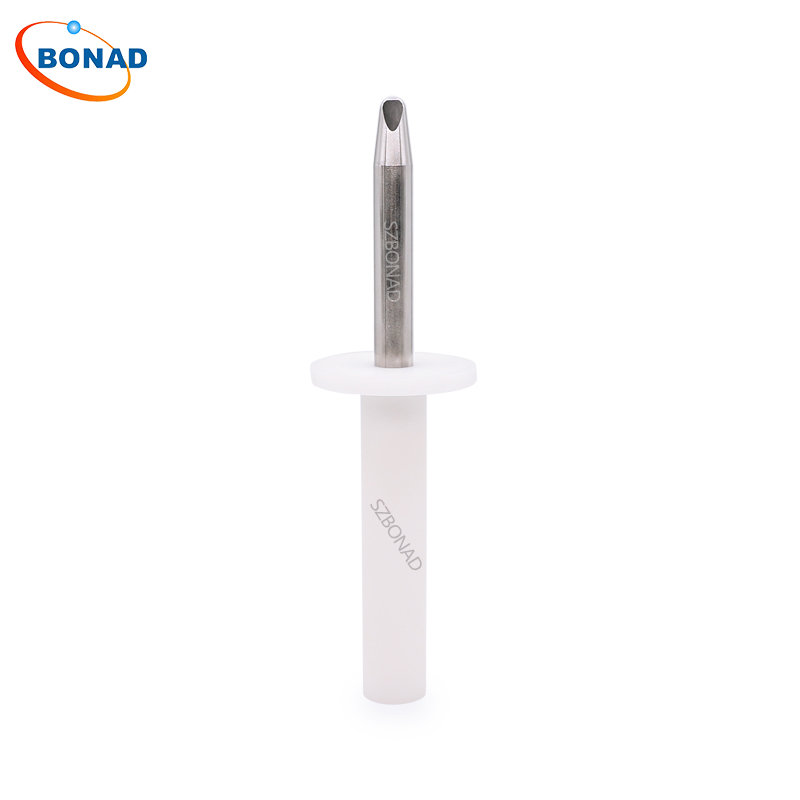

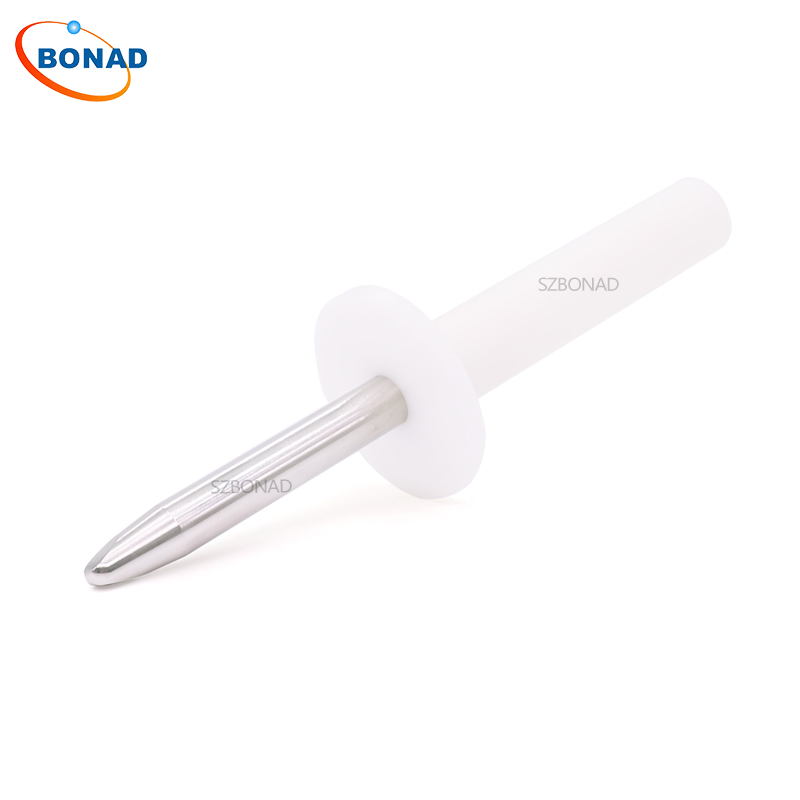

IEC61032 Rigid Test Finger Probe (Test Probe 11)

Model:BND-11

Basic Introduction:

1，according to the Standards:GB4706.1、GB/T16842、GB2099.1 and IEC61032,IEC60065,IEC60335-1,IEC60884-1

2，BND-11 Test Finger is necessary appliances for household and similar electrical appliances of against electric shock protection test

Technical parameters

1, Nodular Finger Diameter :12mm

2, Nodular Finger Length:80mm

3, Dam- board Diameter:50mm

4, Dam- board Length:100mm

Application:

1, The finger of the Test Finger can not touch the live parts or  close to hazardous parts, 50m,-20mmdam-board can not be enter .

2,In the test requirements of preventing from accessing to the hazardous parts, Thrust Test Finger should be applied thrust
